W series oscillating cutting machine for drop stitch fabric air mattress Realizing layered cutting of drop stitch fabric air mattress

Model 1625 1825 2035 2240 Customizable (length*width)
Effective cutting size 1600mm*2500mm 1800mm*2500mm 2000mm*3500mm 2200mm*4000mm length: 800mm-15000mm
Width: 800mm-5000mm
Feeding mode manual/automatic
Max cutting speed 1500mm/s
Cutting precision ±0.1mm
Max cutting thickness 50mm
Data format DXF, PLT, AI, etc.
Transmission mode of data networking cable, data line, USB disk
Materials fixation vacuum adsorption
Power of vacuum pump 7.5kw/9kw/11kw
Working voltage of main machine AC220V/50HZ
Working voltage of vacuum pump AC380V/50HZ
Rated power 10KW-13.5KW
Cutting tool high frequency oscillating knife
Optional tools oscillating knife full Cutting tool, high power active circular knife tool, punching tool, pneumatic oscillating knife tool, drag knife tool, half Cutting tool, V-cut tool, ball-point pen tool, creasing tool
Applicable materials Non-metal materials including car mat, cloth, PE foam, fiber glass, corrugated cardboard, carton, soft PVC crystal mat, leather, sponge, advertising materials, composite materials, etc.
Applicable industries advertising, carpet, garment, fabrics, automotive interiors, suitcases and bags making, packaging, sound-proofing, etc.

The above data is for reference only and is subject to the actual product.

  • High-tech

    design concept of replaceable tool

    High convenience

    no need to make a die, directly import the electronic version

  • High environmental standard

    no pollution due to mechanical cutting

    High efficiency

    multi-machine working simultaneously supervised by one person

  • High precision

    up to 0.1mm

    High applicability

    able to cut a variety of flexible materials and special soft materials

  • Core Technology

    The precision cutting assembly is developed and manufactured by ourselves, working with the steel and aluminum adsorption platform of VIOOO Laser, result in full, stable, and accurate cutting effects

    The positioning accuracy, repetition accuracy and reverse clearance of X, Y and Z axes of the machine were all detected by laser interferometer.

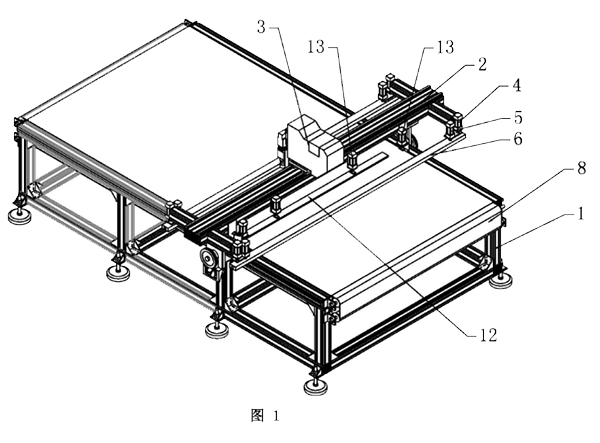

    The upper and lower surfaces of the drop stitch are cut without damaging the stitch because of the unique misaligned structure design, and the operation is more convenient, saving more time and power.

    Product Advantages

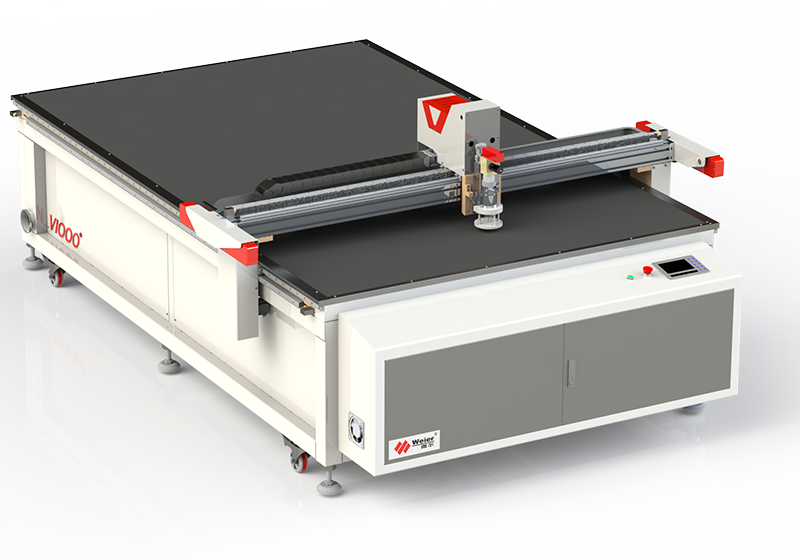

    Product appearance design

    Control system: The intelligent control system, PLC programming control system, work together with automatic typesetting and drawing softwareare, to solve the special needs that cannot be processed by ordinary equipment.

    Motion system: servo motor, quality guide rail, doubl drives on Y axis, suitable for high precision machining.

    Structural system: high strength welded frame, stable and no jitter when running

    Protection system: the system is upgraded with high-sensitivity infrared induction safety protection device to effectively protect operators

    Display of cut products

  • 微尔激光

    VIOOO Laser R&D and production base

    With modern production workshop and necessary equipments

    Nowadays, with the increasing development of science and technology, as a mature CNC equipment manufacturing enterprise, VIOOO Laser will continue to adhere to the business philosophy of “survive by quality, develop by reputation”, the management attitude of“rigor and pragmatism”, and the mission of improving production efficiency by technological innovation, to provide customers with better CNC equipment and solutions.

    VIOOO Laser is on the way to success. You are on the way to success too accompanied by VIOOO Laser.
