Details

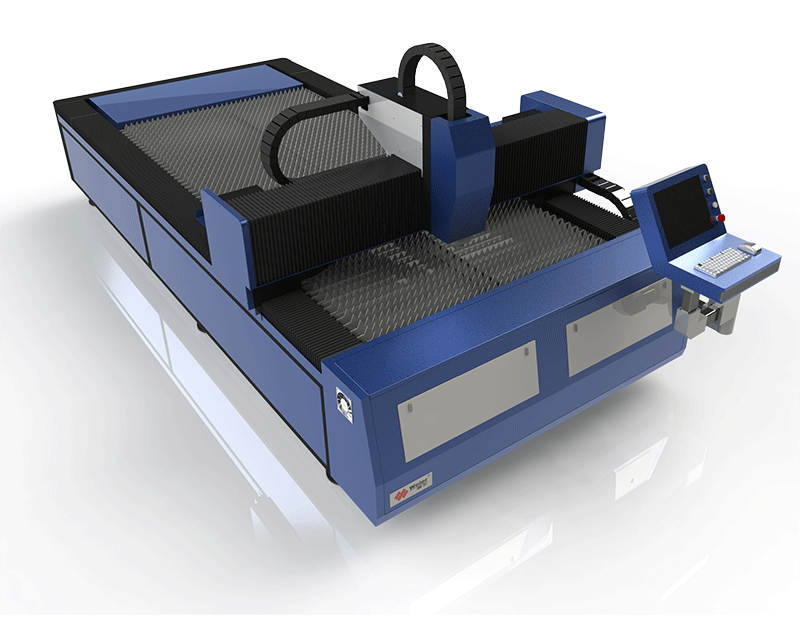

W series single worktable laser cutting machine

Model 3015 4020 6015 6020
Working size 3000*1500mm 4000*2000mm 6000*1500mm 6000*2000mm
Max moving speed 140m/min
Max acceleration 1.5G
Positioning accuracy 0.03mm 0.05mm
Repetition positioning accuracy 0.02mm 0.03mm
Power of laser 4000W/3000W/2000W/1500W/1000W/750W

The above data is for reference only and is subject to the actual product.

  • Auxiliary feeding mechanism


    The auxiliary feeding mechanism greatly reduces the friction between the workpiece and worktable, which helps feeding

    Saves labor cost and improves the feeding efficiency

  • Follower module of cutting head


    The cutting distance between the laser head and the workpiece is maintained at all times to reduce the risk of collision, and has the function of stopping on collision

    Reduce accident rate and improve cutting effect

  • Double-sided, six-degree-of-freedom guide rail locking


    Realize the comprehensive positioning of guide rail, with high quality machining process.

    Stable machining accuracy and efficient cutting ability

  • Core Technology

    Aging steel structure frame The traditional process technique is used to temper the main body of the laser machine, structural steel welding, heat treatment and surface treatment.Strong structure, strong deformation resistance, stable and durable

    Automatic zoom laser cutting head The laser head is adjusted with two-point alignment, and the focus adjustment is driven by imported motor. In terms of perforation, the efficiency is significantly improved. The lens are protected in drawer type for easy replacement

    Aluminum profile beam Light weight, excellent shape, high strength, corrosion resistance, long life, renewable, less pollution, low maintenance costs

    Meet the cutting requirements of different metal plates Support many functions such as scanning cut, frog jump, automatic edge-tracking, common edge cutting, breakpoint return, follow-up control, going back.Cutting accuracy of ±0.55mm, slit length 0.15mm, no scraping, no burr, smooth cut surface

    Basic Functions

    Product appearance design

    Intelligent travel protection Automatically monitors the traveling range of the motion module, responsively and quickly.At the same time the risk of operation is reduced to the lowest with a hard limit as a additional safeguard

    Intelligent control software Intelligent layout for cutting graphics;Multi-type graphics import;Automatic optimization of cutting sequence; Intelligent edge-tracking, automatic positioning;Improve the utilization of materials, reduce waste; Simple and fast system operation, accurate cutting instructions, making better user experience

    Intelligent alarm system The multi-directional abnormal alarm of the device is directly transmitted to the panel, the device fault is known in advance, and the hidden danger is reduced, make the equipment abnormal troubleshooting efficiency doubled

    Display of cut products

  • 微尔激光

    VIOOO Laser R&D and production base

    with modern production workshop and necessary equipments

    Nowadays, with the increasing development of science and technology, as a mature CNC equipment manufacturing enterprise, VIOOO Laser will continue to adhere to the business philosophy of “survive by quality, develop by reputation”, the management attitude of“rigor and pragmatism”, and the mission of improving production efficiency by technological innovation, to provide customers with better CNC equipment and solutions.

    VIOOO Laser is on the way to success.You are on the way to success too accompanied by VIOOO Laser.
