V+ three-dimensional fiber laser cutting machine

Model V6DL
Number of axes 6
Repetition positioning accuracy ±0.08mm
Drive capacity 5000w
Range of motion Basic axis J1 ±170°(±50°)
Basic axis J2 -155°~+100°
Basic axis J3 -170°~+260°
Basic axis J4 ±180°
Basic axis J5 -50°~+230°
Basic axis J6 ±360°
Max speed Basic axis J1 Basic axis J1 3.40rad/s{195°/s}(3.05rad/s{175°/s})
Basic axis J2 3.49rad/s{210°/s}
Basic axis J3 3.49rad/s{210°/s}
Basic axis J4 7.33rad/s{420°/s}
Basic axis J5 7.33rad/s{420°/s}
Basic axis J6 10.82rad/s{600°/s}
Load capacity Allowable torque J4 11.8N·m
Allowable torque J5 9.8N·m
Allowable torque J6 5.9N·m
Allowable moment of inertia J4 0.30kg·m²
Allowable moment of inertia J5 0.25kg·m²
Allowable moment of inertia J6 0.06kg·m²
Cross section area of robot motion range 7.48M²x340° (optional)
Ambient temperature, humidity 0~45℃, 20~80%RH (without condensation)
Load capacity of axis 3 20kg
Installation method ground / side hanging / lifting

The above data is for reference only and is subject to the actual product.

  • Accurate and flexible


    Six degree-of-freedom, multi-joint, fully enclosed robotic arm with extreme accuracy,

    flexibility and speed

  • Excellent performance


    3D cutting head, light weight, and height matching with the robot to achieve better acceleration performance

    The capacitive non-contact automatic height tracking system automatically adjusts the deformation of the stamped part without affecting the cutting of the workpiece

  • Teaching programming


    The position of the sample was recorded point by point with a demonstrator, and a cutting program composed of straight line and arc was generated

    Once a program is completed, mass production can be performed

  • Application

    Product appearance design

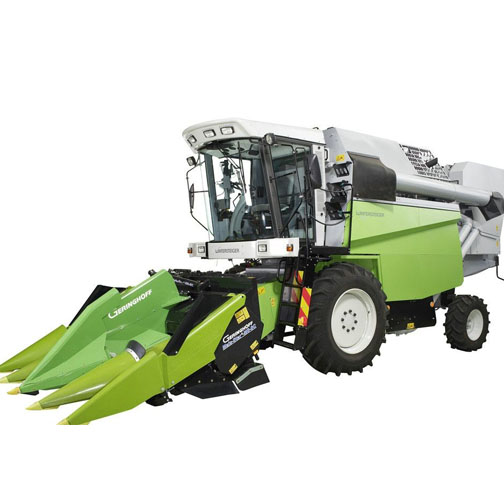

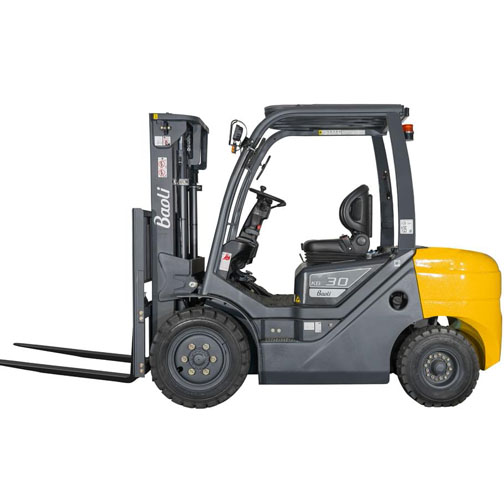

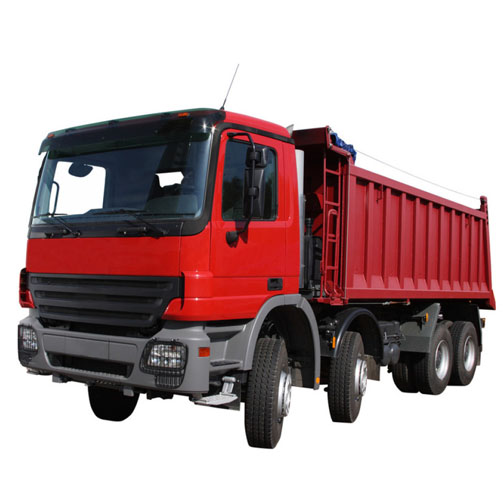

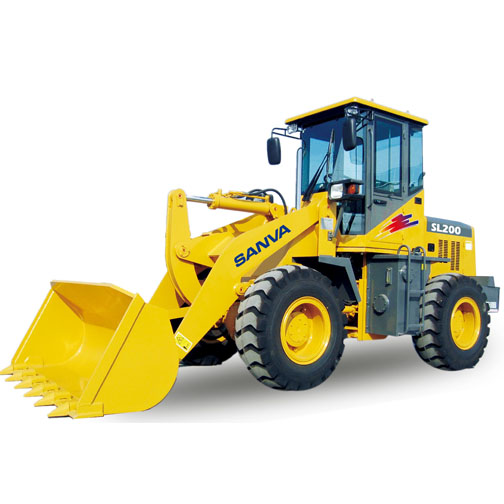

    The robot 3D laser cutting machine is mainly composed of 6-axis robot, fiber laser, cutting head, control system, regulated power supply, chiller, etc., instead of manual plasma cutting, widely used in cutting of 3D covering parts on trucks, buses, forklifts, agricultural machinery, engineering machinery, etc.

    Display of cut products
