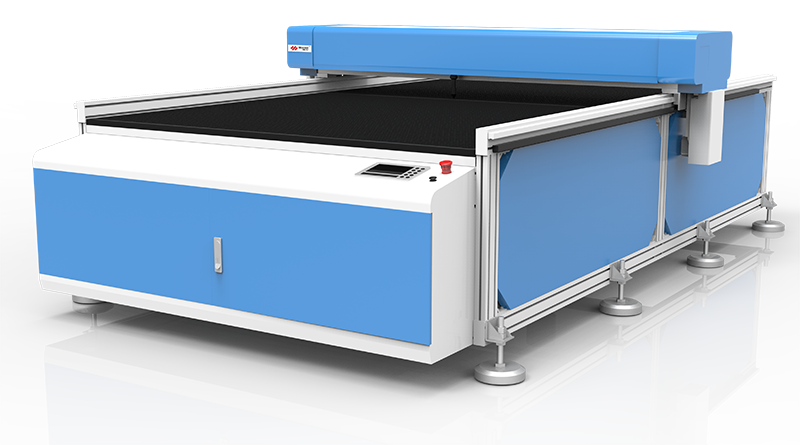

|Effective cutting size||1600mm*2500mm||1800mm*2500mm||2000mm*3500mm||2200mm*4000mm||
|Max cutting speed||400mm/s|
|Max cutting thickness||50mm|
|Data format||DXF, PLT, AI, etc.|
|Transmission mode of data||networking cable, data line, USB disk|
|Materials fixation||Blower adsorption|
|Power of blower||550W/1.1KW|
|Working voltage of main machine||AC220V/50HZ|
|Type of laser||CO2|
|Power of laser||60W/80W/100W/130W/150W|
|Operating environment||Temperature: 0~ 40°C Humidity: ≤80% non-condensing water, no dust or less dust|
|Optional tools||Double head, triple head, double gantry, large CCD, small CCD, projection, ball-point pen, etc.|
|Applicable materials||Non-metallic materials such as cloth, leather, cardboard, wood, composite materials|
|Applicable industries||Garment, furniture, packaging, advertising and printing, automotive interiors, etc.|
The above data is for reference only and is subject to the actual product.
laser cutting, no defect on the edge, with 0.1mm light spot, is non-contact processing,
which can cut a variety of complex graphics such as right-angle and punch.
This cutting machine requires only one person to operate from design to cutting.
Working with the typesetting software, the material utilization rate can be greatly improved.
competent to cut most non-metallic materials such as non-woven fabric, paper, nylon, foam, cotton, PTFE.
The design of fully enclosed flight light path protects the core optical devices from pollution, as well ensures the uniformity of the light spot effect of the whole cutting size, which has passed the CE certification.

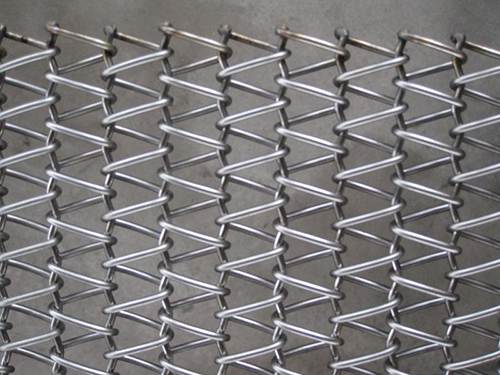

The positioning accuracy, repetition accuracy and reverse clearance of X, Y and Z axes of the machine were all detected by laser interferometer.The problem of poor Cutting precision caused by uneven conveying of flexible fabrics is solved by optimizing stainless steel conveyor belt and synchronous following pressing device.
Control system: The intelligent control system, PLC programming control system, work together with automatic typesetting and drawing software, to solve the special needs that cannot be processed by ordinary equipment
Motion system: high quality guide rail, helical gear rack, double drives on Y axis, suitable for high precision machining
Structural system: Industrial aluminum alloy frame, no oxidation, no rust, no deformation, more durable, and more convenient for disassembly and assembly.
