|Effective cutting size||1600mm*2500mm||1800mm*2500mm||2000mm*3500mm||2200mm*4000mm||
|Max cutting speed||≤400mm/s|
|Max cutting thickness||≤50mm|
|Data format||DXF, PLT, AI, etc.|
|Transmission mode of data||networking cable, data line, USB disk|
|Materials fixation||Blower adsorption|
|Power of blower||550W/1.1KW|
|Working voltage of main machine||AC220V/50HZ|
|Type of laser||CO2|
|Power of laser||60W/80W/100W/130W/150W|
|Operating environment||Temperature: 0~ 40°C Humidity: ≤80% non-condensing water, no dust or less dust|
|Optional tools||Double head, triple head, double gantry, large CCD, small CCD, projection, ball-point pen, etc.|
|Applicable materials||Non-metallic materials such as cloth, leather, cardboard, wood, composite materials|
|Applicable industries||Garment, furniture, packaging, advertising and printing, automotive interiors, etc.|
The above data is for reference only and is subject to the actual product.
laser cutting, no defect on the edge, with 0.1mm light spot, is non-contact processing,
which can cut a variety of complex graphics such as right-angle and punch.
This cutting machine requires only one person to operate from design to cutting.
Working with the typesetting software, the material utilization rate can be greatly improved.
competent to cut most non-metallic materials such
as non-woven fabric, paper, nylon, foam, cotton, PTFE.

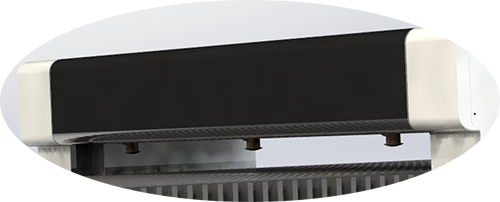

The design of fully enclosed flight light path protects the core optical devices from pollution, as well ensures the uniformity of the light spot effect of the whole cutting size, which has passed the CE certification.
The positioning accuracy, repetition accuracy and reverse clearance of X, Y and Z axes of the machine were all detected by laser interferometer.Multi-head cutting with the same patterns at the same time, automatic adjustment of the laser heads spacing, the maximum saving of materials, ensure the uniform distribution of laser head energy, guarantee the quality of machining, suitable for mass production.

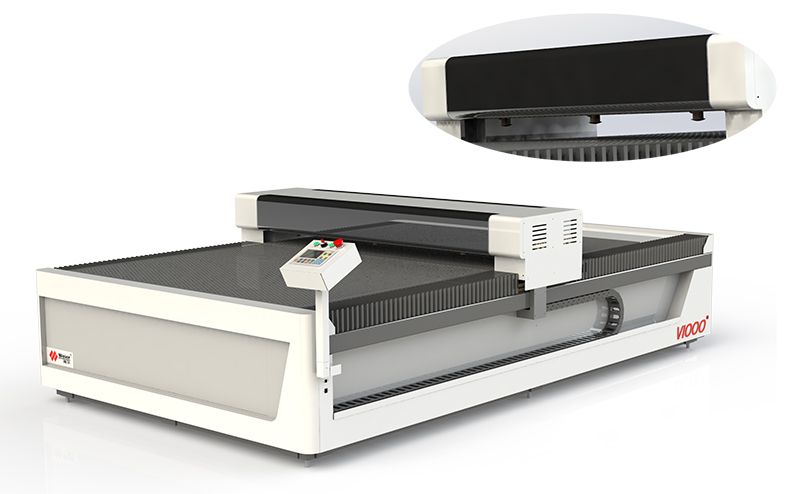

Product appearance: V+ series Laser machine is equipped with luxurious metal shell, which can better protect the internal motion system and circuit structure of the equipment, and make the equipment more beautiful and elegant
Motion system: high quality guide rail, helical gear rack, double drives on Y axis, precision operation, suitable for high precision machining
Structural system: Industrial aluminum alloy frame, no oxidation, no rust, no deformation, more durable, and more convenient for disassembly and assembly.
